Dimensional and Rotational Testing of MOM6

  • Marshall Ward
  • Robert Hallberg
  • Alistair Adcroft

NOAA-GFDL / Princeton U.

23 Sept 2021

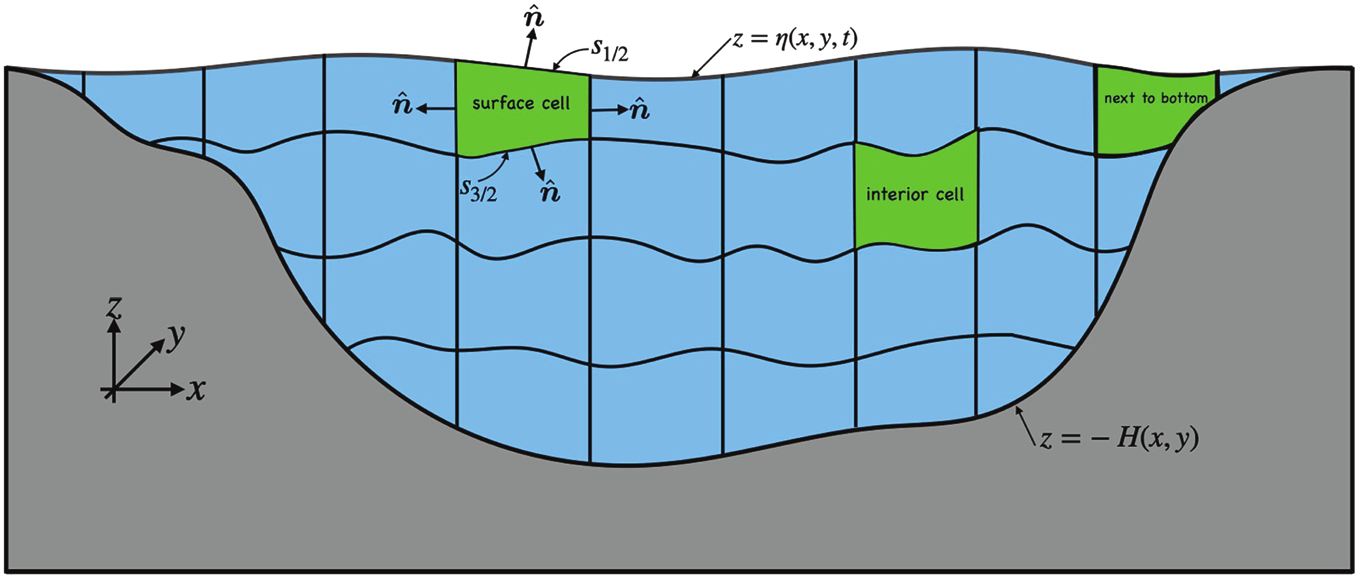

Global Modeling

Ocean Dynamics


Turbulent Dynamics

Motivation

  • Sustain long simulations over decades, centuries
  • Accurate preservation of tracers
  • Residual noise can cause chaotic growth
  • Operational work needs robust testing

Reproducible floating point arithmetic is essential

Solution verification

Step   Days   Energy/Mass [m2 s-2]     Mean Sea Level [m]   ...

   0   0.00   7.2161166068132286E-27   1.8190E-12           ...
  12   0.50   2.7781004671136538E-04   1.1369E-12           ...
  24   1.00   2.7734897826598717E-04   1.8190E-12           ...

Based on global metrics (energy, mass, etc)

Diagnostic verification

u-point: ocean_model-u
  min  = -6.7187595818683776E-03  max  =  3.3480219779204019E-02
  mean =  1.1239682303793666E-04  bits = 21851
v-point: ocean_model-v
  min  = -8.3469699425156359E-03  max  =  6.8420831486068704E-03
  mean =  1.2076392816784489E-03  bits = 18606
h-point: ocean_model-h
  min  =  9.9999999999999915E-04  max  =  5.6265092225099863E+02
  mean =  3.6490088139048595E+02  bits = 18673
...

Min, max, mean, bit count for every diagnostic

Verification Suite


Verification Tests

Test Description
grid Symmetric/Asymmetric memory grids
layout 1×1 and 2×1 domain decomposition
restart Restart at mid-run
dimension Dimensional scaling
rotation Index rotation
openmp OpenMP (single-thread)

Validation Testing


Community Validation


Floating Point Review


\[\phi = (-1)^\color{yellow}{s} \times 2^\color{aquamarine}{M} \times (1 + \color{pink}{\alpha})\]

  • Smallest fractional diff: \(2^{-52} \approx 2.2 \times 10^{-16}\)
  • 17 digits to uniquely specify a result

Addition Associativity

What is \(10^{-16} + 1 - 1\)?

\[\begin{aligned} (10^{-16} + 1) - 1 &\equiv 0 \\ 10^{-16} + (1 - 1) &= 10^{-16} \end{aligned}\]

Residuals below ULP (\(2\times10^{-16}\)) are lost.

Floating residual

Let \(s = 1 + 2 \times 10^{-16}\). What is \((s + 1) - 1\)?

\[\begin{aligned} s + 1 &= 2 \\ (s + 1) - 1 &= 1 \neq s \end{aligned}\]

Manipulation of \(s\) shifts ULP to \(4 \times 10^{-16}\).

Multiplication associativity

If \(a = b = 1.5\), and \(c = 1 + 2^{-52}\), then

\[\begin{aligned} (a \times b) \times c &\equiv 2.25 + 2^{-51} \\ a \times (b \times c) &\equiv 2.25 + 2^{-50} \end{aligned}\]

Explicit Ordering

Ambiguous ordering is rejected:

\[x + y + z\]

Parentheses are required:

\[\begin{aligned} (x + y) + z \\ x + (y + z) \end{aligned}\]

Select to optimize accuracy and performance.

Implementation

GCC Fortran

gfortran -fprotect-parens ...    # default
gfortran -Ofast ...              # Sets -fno-protect-parens

Intel Fortran

ifort -assume protect-parens     # Not default

Global Summation

Parentheses work, but have cumulant errors:

\[\sum{\phi} = (\phi_1 + (\phi_2 + ( \phi_3 + ... )))\]

Fixed-precision is accurate and independent of order:


The sum() intrinsic is ambiguous!

Transcendentals

How is sin(x) computed? Ambiguous!

\[f(48^\circ) = 2 \Omega \sin \left( \frac{48 \pi}{180} \right)\]

glibc 2.22: 0.108381727637274115E-03 (3F1C695FE71A3FE4)
      2.26: 0.108381727637274128E-03 (3F1C695FE71A3FE5)

Other compilers may not even use libm!

We avoid transcendentals where possible, and manage dependencies when necessary.

Higher order powers

How to evaluate \(z^6\)?

These forms are ambiguous:

z6 = z * z * z * z * z * z
z6 = z**6

Compilers may use libm pow(), also ambiguous.

We recommend:

z3 = z * z * z
z6 = z3 * z3

(Why not (z * z) * z?)

Negative Zero

Although \(-0 = 0\), bit count will differ.

\[\begin{aligned} \phi \times 0 = \begin{cases} 0 & \text{if $\phi \geq 0$} \\ -0 & \text{if $\phi < 0$} \end{cases} \end{aligned}\]

\(0 \Leftrightarrow -0\) transitions can detect unexpected values.

But if unresolvable, add a zero: \(-0 + 0 \Rightarrow +0\).

(e.g. min() intrinsic)

Dimensional Consistency

From the seawater equation of state:

intz(m) = &
    g_Earth * dz * ((p0 + p_ave) * (I_Lzz * I_al0) - rho_ref_mks) &
    - 2.0 * eps * I_Rho * (lambda * I_al0**2) * eps2 * ( &
        C1_3 + eps2 * (0.2 + eps2 * (C1_7 + C1_9 * eps2)) &
    )

Can we ensure expressions are dimensionally correct?

Associative Scaling

Recall the floating point format

\[\phi = (-1)^{\color{yellow}s} \times 2^{\color{yellow}M} \times (1 + {\color{yellow}\alpha})\]

Power-of-two multiplication is associative

\[2^\color{yellow}{N} \times \phi \times 2^\color{yellow}{-N} = \phi\]

This provides a basis for bitwise dimensional scaling.

Dimension Scaling

Fields rescaled by dimensions should be invariant

\[\begin{aligned} u^{n+1} &= u^{n} + \Delta t \times \mathcal{F} \\ \color{yellow}{2^{L-T}} u^{n+1} &= \color{yellow}{2^{L-T}} u^{n} + \color{yellow}{2^T} \Delta t \times \color{yellow}{2^{L - 2T}} \mathcal{F} \end{aligned}\]

GFD Scaling

\[\begin{aligned} u_t + u u_x + v u_y &= -g h_x \\ v_t + u v_x + v v_y &= -g h_y \\ h_t + h u_x + h v_y &= 0 \\ \end{aligned}\]

Dimensions:
  • \(L\) (horiz. length)
  • \(T\) (time)
  • \(H\) (layer thickness)
Invariants:
  • \(\left[ u, v \right] = L T^{-1}\)
  • \(\left[ g \right] = L^2 T^{-2} H^{-1}\)

MOM6 Dimensionality

Unit Scaling Name
s T Time
m L Horizontal length
m H Layer thickness
m Z Vertical length
kg/m3 R Density
J/kg Q Enthalpy

Implementation

Input parameters

call get_param(... , "DT", ... , scale=US%s_to_T)

Explicit constants

eps_vel = 1.0e-10 * US%m_s_to_L_T
ustar = 0.01 * US%m_to_Z * US%T_to_s

Diagnostic registration

call register_diag_field(..., "u", ... , conversion=US%L_T_to_m_s)

"US" contains user-defined power-of-two rescalings.

Rotational Consistency

PFu(I,j,k) = (((za(i,j)*dp(i,j) + intp_dza(i,j,k)) - &
    (za(i+1,j)*dp(i+1,j) + intp_dza(i+1,j,k))) + &
    ((dp(i+1,j) - dp(i,j)) * intx_za(I,j) - &
    (p(i+1,j,K) - p(i,j,K)) * intx_dza(I,j,k)) ) * &
    (2.0*G%IdxCu(I,j) / ((dp(i,j) + dp(i+1,j)) + dp_neglect))
PFv(i,J,k) = (((za(i,j)*dp(i,j) + intp_dza(i,j,k)) - &
    (za(i,j+1)*dp(i,j+1) + intp_dza(i,j+1,k))) + &
    ((dp(i,j+1) - dp(i,j)) * inty_za(i,J) - &
    (p(i,j+1,K) - p(i,j,K)) * inty_dza(i,J,k))) * &
    (2.0*G%IdyCv(i,J) / ((dp(i,j) + dp(i,j+1)) + dp_neglect))

Can we ensure consistency of expressions like this?

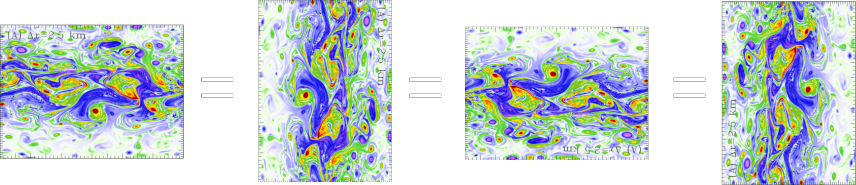

Horizontal Rotation


Rotate input fields, forcing, coordinates.

(x,y) and (u,v) describe first and second index

Index Rotation

image image


Applying the Rotation


Read inputs on coupler grid

Move to rotated MOM6 grid

De-rotate fields sent back to coupler and output

Rotational Pairs

For 90° rotations:

Scalar
  • \(\phi(I,J) = \phi(j, N-i)\)
Array pair
  • \(\phi_u(I, J) = \phi_v(j, N-i)\)
  • \(\phi_v(I, J) = \phi_u(j, N-i)\)
Vector
  • \(u(I, J) = v(j, N-i)\)
  • \(v(I, J) = -u(j, N-i)\)

All quarter-turn rotations are supported.

Invariant stencils

\(\phi^{(c)}_{i,j} = \frac{1}{4} (\phi_A + \phi_B + \phi_C + \phi_D)\)



\(\frac{1}{4} ( (\color{LightCoral}{\phi_A} + \color{LightCoral}{\phi_B}) + (\color{LightSkyBlue}{\phi_C} + \color{LightSkyBlue}{\phi_D}) )\)

\(\frac{1}{4} ( (\color{LightCoral}{\phi_A} + \color{LightSkyBlue}{\phi_C}) + (\color{LightCoral}{\phi_B} + \color{LightSkyBlue}{\phi_D}) )\)

image \(\frac{1}{4} ( (\color{LightCoral}{\phi_A + \phi_D}) + (\color{LightSkyBlue}{\phi_B + \phi_C}) )\)

Rotational ordering

subroutine advect_tracer(...)
   ! ...
   x_first = modulo(turns, 2) == 1
   if (x_first) then
      call advect_x(...)
      call advect_y(...)
   else
      call advect_y(...)
      call advect_x(...)
   endif
end subroutine advect_tracer

When all else fails, reorder the algorithm.

Examples

Order of Operations

Kinetic energy calculation:

tmp1(i,j,k) = &
  0.25 * KE_scale_factor * (areaTm(i,j) * h(i,j,k))) &
  * (u(I-1,j,k)**2 + u(I,j,k)**2 + v(i,J-1,k)**2 + v(i,J,k)**2)
tmp1(i,j,k) = &
  (0.25 * KE_scale_factor * (areaTm(i,j) * h(i,j,k))) &
  * ((u(I-1,j,k)**2 + u(I,j,k)**2) + (v(i,J-1,k)**2 + v(i,J,k)**2))

https://github.com/NOAA-GFDL/MOM6/pull/1216/files

Dimensionality

Salinity contribution to diffusivity:

Kd_lay(i,j,k-1) = Kd_lay(i,j,k-1) + 0.5**KS_extra(i,K)
Kd_lay(i,j,k)   = Kd_lay(i,j,k)   + 0.5**KS_extra(i,K)

\(\ldots + \left(\tfrac{1}{2}\right)^{\kappa_S}\)?

https://github.com/NOAA-GFDL/MOM6/pull/921

Rotational Symmetry

subroutine thickness_diffuse_full
   ! ...

   Work_u(I,j) = Work_u(I,j) + G_scale * (...)

   Work_v(i,J) = Work_v(i,J) - G_scale * (...)

   !...
end subroutine thickness_diffuse_full

https://github.com/NOAA-GFDL/MOM6/pull/1050

Cost of Reproducibility

  • We forfeit compiler's ability to optimize expressions!
    • We are responsible for parentheses placement
  • Summations are expensive!
    • This is an infrequent operation in our model

In general, we value reproducibility over speed.

Summary

  • Bit reproducibility is essential, and achievable!
  • Methods for bit reproducibility
    • Use parentheses for arithmetic operations
    • Avoid ambiguous intrinsics: sum(), sin(), ...
    • Manage transcendentals when possible
  • Enables aggressive regression testing
    • Dimensional consistency
    • Rotationally symmetric solvers
