Pursuing Peak Performance in Pelagic Predictions

Marshall Ward
National Computational Infrastructure

Pursuing Peak Performance in Pelagic Predictions MOM 5

Marshall Ward
National Computational Infrastructure

Relative performance is well-documented

What is Peak Performance?

$$R_\text{peak} = N_\text{CPU} \times \left( f \times N_\text{vec} \times N_\text{ins} \right)$$

$N_\text{CPU}$ : Number of CPU cores
$f$ : CPU frequency (cycles per second)
$N_\text{vec}$ : FLOPs per instruction
$N_\text{ins}$ : Instructions per cycle

Dennard scaling breakdown

Power $\propto f$ (physics)
Power $\propto$ area (Dennard)
Lower area, raise $f$
$P$ stays constant...
... until 2005 ($P \gg A$)

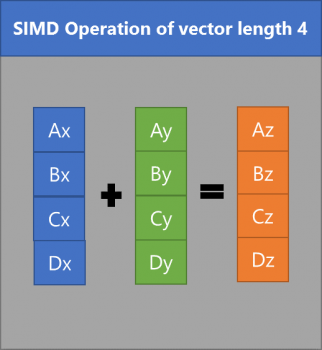

SIMD vectorization

SSE: 4 SP / 2 DP floats
AVX, AVX2: 8 SP / 4 DP floats
AVX-512: 16 SP / 8 DP floats

$N_\text{vec}$ = 4 DP on Raijin (AVX)

Sandy Bridge Concurrency

Concurrent Add, Multiply, Load, Stores ($N_\text{ins} = 2$)

Peak (SP) performance on Raijin

Cores	GFLOP/sec/core	Add	Add/Mult
1-2	26.4	26.03	52.11
3-4	25.6	25.24	50.56
5-6	24.8	24.41	48.96
7-8	24.0	23.66	47.49

Subject to # of cores, AVX slowdown, and temperature
Double precision is half (~12 GFLOP/sec)

MOM 5 AVX vectorization

Subroutine	% AVX
MAIN	88.1
update_ocean_model	91.0
update_ocean_tracer	92.9
vert_mix_coeff	80.9
ocean_explicit_accel_a	92.8
update_ocean_barotropic	94.5

MOM across platforms

Ocean core runtime, 960 cores, 10 day (480 steps)

Platform	Runtime (s)	FLOP/sec/core
Sandy Bridge (no SIMD)	179.2	1.05
Sandy Bridge (AVX)	164.3	1.14
Broadwell (AVX)	160.2	1.17
Broadwell (AVX2)	156.0	1.20
Knights Landing (AVX)	377.1	0.50

Test code block

Simple evaluation in biharmonic solver


do k=1,nk
  do j=jsd,jed
     do i=isd,ied
        massqc(i,j,k) = 0.25 * Grd%dau(i,j) &
                       * Thickness%rho_dzu(i,j,k,tau)
     enddo
  enddo
enddo

Roofline analysis predicts 12 GFLOP/sec

Vector update

CPUs	Tile size	Runtime (ms)	GFLOPS/sec
1	187.5	27.970	0.824
2	93.8	18.374	0.627
4	46.9	7.797	0.739
8	37.5	5.427	0.531
16	23.4	2.940	0.490
32	11.7	1.980	0.364
60	5.0	1.409	0.273
120	2.5	1.193	0.161

Unaligned assembly


  ..B2.418:
          vmovupd   (%r15,%r14,8), %xmm0
          vmovupd   (%r13,%r14,8), %xmm2
          vmovupd   32(%r15,%r14,8), %xmm6
          vmovupd   64(%r15,%r14,8), %xmm12
          vmovupd   32(%rdi,%r14,8), %xmm8
          vmovupd   64(%rdi,%r14,8), %xmm14
          vinsertf128 $1, 16(%r15,%r14,8), %ymm0, %ymm1
          vmulpd    .L_2il0floatpacket.0(%rip), %ymm1, %ymm3
          vinsertf128 $1, 16(%r13,%r14,8), %ymm2, %ymm4
          vmulpd    %ymm4, %ymm3, %ymm5
          vmovupd   96(%r15,%r14,8), %xmm2
          vmovupd   96(%rdi,%r14,8), %xmm4
          vmovupd   %ymm5, (%r11,%r14,8)
          vinsertf128 $1, 48(%r15,%r14,8), %ymm6, %ymm7
          vinsertf128 $1, 80(%r15,%r14,8), %ymm12, %ymm13
          vinsertf128 $1, 112(%r15,%r14,8), %ymm2, %ymm3
          vmulpd    .L_2il0floatpacket.0(%rip), %ymm7, %ymm9
          vmulpd    .L_2il0floatpacket.0(%rip), %ymm13, %ymm15
          vmulpd    .L_2il0floatpacket.0(%rip), %ymm3, %ymm5
          vinsertf128 $1, 48(%rdi,%r14,8), %ymm8, %ymm10
          vinsertf128 $1, 80(%rdi,%r14,8), %ymm14, %ymm0
          vinsertf128 $1, 112(%rdi,%r14,8), %ymm4, %ymm6
          vmulpd    %ymm10, %ymm9, %ymm11
          vmulpd    %ymm0, %ymm15, %ymm1
          vmulpd    %ymm6, %ymm5, %ymm7
          vmovupd   %ymm11, 32(%r9,%r14,8)
          vmovupd   %ymm1, 64(%r9,%r14,8)
          vmovupd   %ymm7, 96(%r9,%r14,8)
          addq      $16, %r14
          cmpq      %r10, %r14
          jb        ..B2.418

Contiguous block

Vectorised restructure


  !dir$ vector aligned
  do m=1,npts_c
      massqc_c(m) = 0.25 * dau_c(m) * rho_dzu_c(m)
  enddo

Unroll vectors and align to memory

Peak assembly?


  ..B2.461:
          vmulpd    8(%r13,%r15,8), %ymm0, %ymm1
          vmulpd    40(%r13,%r15,8), %ymm0, %ymm3
          vmulpd    72(%r13,%r15,8), %ymm0, %ymm5
          vmulpd    104(%r13,%r15,8), %ymm0, %ymm7
          vmulpd    8(%r11,%r15,8), %ymm1, %ymm2
          vmulpd    40(%r11,%r15,8), %ymm3, %ymm4
          vmulpd    72(%r11,%r15,8), %ymm5, %ymm6
          vmulpd    104(%r11,%r15,8), %ymm7, %ymm8
          vmovupd   %ymm2, 8(%r10,%r15,8)
          vmovupd   %ymm4, 40(%r10,%r15,8)
          vmovupd   %ymm6, 72(%r10,%r15,8)
          vmovupd   %ymm8, 104(%r10,%r15,8)
          addq      $16, %r15
          cmpq      %r9, %r15
          jb        ..B2.461

Faster, but still far from peak...

CPUs	Nested (ms)	Contig. (ms)	GFLOPS/sec
1	27.970	19.775	1.17
2	18.374	10.390	1.11
4	7.797	5.598	1.03
8	5.427	3.888	0.74
16	2.940	1.770	0.81
32	1.980	1.059	0.68
60	1.409	0.330	1.16
120	1.193	0.230	0.83

Summary

No substantial benefit from upcoming hardware
MOM 5 is well-vectorized, but...
MOM performance is far below peak
Small tiles break pipelines
Even "peak" code can run below peak

The path forward is not clear

New strategies, frameworks, or lower-level languages will be needed to achieve peak performance in the future
